Resistograph Tree Testing in Jacksonville, NC

Measuring Internal Decay Before Anyone Decides to Cut

Resistograph testing in Jacksonville, NC measures internal decay in a standing tree, so a sound hardwood isn't removed on a guess. Local species notes.

By Michael Godbersen, Owner · Updated September 28, 2026

📞 Ask About Testing — (618) 704-4861

A resistograph is a drill that measures wood. It pushes a needle-thin probe through a standing trunk and records how hard the wood pushes back, which maps the solid wood and the rot without taking the tree apart. We use it for one reason: so nobody has to decide whether a big hardwood is dangerous by looking at it.

How do I find out if my tree is rotten inside?

From the outside you can get part of the way: a cavity, a fungal bracket, a seam running up the trunk or a hollow sound are all real signals, and a lifted root plate settles the question without any tool at all. What you cannot tell by looking is how much sound wood is left — and that is the number that decides whether a tree stays. For that it has to be measured, which means drilling it. The tool is a drill with a probe about the thickness of a wire. It advances through the trunk at a constant rate and records the resistance the wood offers the whole way in, printing a profile of density from bark to center. Solid wood reads high and even. Decay reads as a drop — and the depth at which the drop starts, how wide it runs, and whether it closes again tells us where the rot is and how much sound wood is left holding the tree up. A 3 mm hole is the entire wound, which is the point: you learn what is inside a 90-foot tree without climbing it apart first. What it does not do is give an opinion. It gives a measurement. The judgment still belongs to the person reading it against the lean, the root plate, the canopy, and what is underneath the tree.

Why We Test: To Measure Risk, Not to Justify a Removal

A mature hardwood over a house looks alarming, and with nothing but a visual inspection to go on the cautious answer is always “take it down.” Every tree company in the world can sell that answer. But a 60-year-old water oak shading the west side of your house is worth real money in cooling, and it is not replaceable inside a human lifetime. So we measure instead of guessing. In our experience roughly 60 percent of the trees we measure show some rot or decay — and still do not need to come out right away. That is the useful finding, and it is why a single test is only half the tool. Rot on its own does not decide anything; what matters is how much sound wood is left, where it is, and how fast that is changing. One reading tells you the risk today. Re-testing the same tree each year tells you the direction and the speed — whether you are looking at decay that has been sitting still for a decade or something that moved measurably in twelve months. That turns a yes-or-no into a real decision with three honest options: leave it and keep watching, trim it to take weight off the structure and buy years, or remove it. You are choosing between those with a number in front of you rather than taking anyone's word for it, ours included.

Tree trimming in Jacksonville, NC — taking weight off instead of taking the tree Tree removal in Jacksonville, NC — when the wood says it has to go

How Much Rot Is Too Much?

There is no single percentage that decides it, and anyone who gives you one is oversimplifying. The rule of thumb you will find quoted most often comes from Claus Mattheck: a shell-thickness ratio of t/R = 0.3, where t is the remaining sound wall and R is the trunk radius — roughly 70 percent of the radius hollow before the tree is flagged. It is a genuinely useful starting point and we do look at it. It is a starting point and not a verdict, and the published research is explicit about that. Reviewing the strength-loss formulas in Arboriculture & Urban Forestry, Kane, Ryan and Bloniarz note that “the author of each formula cautions that the distinction between a hazard tree that needs to be removed and a nonhazard tree that can remain standing is not clear and rigid,” and conclude that “hazard tree assessment is an art as much as it is a science.” What has to be weighed alongside the number: the species and how its wood behaves, WHERE the decay sits — a hollow at mid-trunk is a different problem from decay at the root collar — the lean, the condition of the root plate, and what is underneath the tree. A hollow trunk in the middle of a pasture and the same hollow trunk over a child's bedroom are not the same risk, and no formula knows the difference. Our approach is the boring one: measure it, assess the risk with everything else in front of us, and re-test annually so the trend is doing the arguing rather than one snapshot.

What We Find in Onslow County Trees

Mature maples almost always carry some heartwood rot. Water oaks show a decent amount of rot on the resistograph roughly seven or eight times in ten. Live oaks rarely rot. In our experience the species here fall into a pattern consistent enough that we go into a test with an expectation: • Mature maples — almost always carry some heartwood rot. We rarely test a big maple and find it clean all the way through. • Water oaks — show a decent amount of rot on the resistograph roughly seven or eight times in ten. • Live oaks — rarely rot. They are the exception, and they are usually the tree worth keeping. We suspect the high water table here is part of why. Standing water and saturated root zones are hard on a tree's ability to wall off decay, and this is a coastal county where the water is never far down. That is a suspicion drawn from what we keep finding, not a conclusion — we are reporting a pattern in our own test results, not a study. What it means practically: if you have a big maple or water oak close to the house, the odds are good that there is something inside it. That is not a reason to remove it. It is a reason to know the number before the next storm rather than after.

Lightning-Struck Pines Are a Different Problem

Lightning is the threat people underestimate here, and tall pines take most of the strikes because they are the tallest thing in the yard. What a strike does inside a pine is dry the heartwood out along the path it traveled. As that wood dries it shrinks, and stress cracks open — a route straight into the center of the tree for insects and infection. The tree's own answer is resin: pines push sap out to seal a wound, and NC State Extension describes the dried result as "pitch tubes" when beetles are the thing being repelled. The catch, in Extension's words, is that "stressed trees may not have the resources available to produce sap" — and Extension lists lightning strikes among the stresses that predispose pines to Ips engraver beetle attack in the first place. So the tree is trying to seal a wound at the exact moment it is least able to. In our experience many struck pines do not recover, and the ones that fail often look fine for a season first. A strike is a good reason to have the trunk tested rather than to wait and watch.

What to do after storm damage to trees

The Storms Have Been Quiet. The Rot Hasn't.

North Carolina has not taken a hurricane landfall since Isaias came ashore at Ocean Isle Beach in August 2020, according to the NC State Climate Office's landfall record. Before that, Dorian in September 2019, and Florence — which the National Weather Service in Wilmington puts on the beach near Wrightsville the morning of Sept. 14, 2018 with sustained winds near 90 mph. Six quiet years is long enough for a lot of people to stop thinking about their trees, and it is exactly the wrong conclusion to draw. Decay does not take years off. A tree that would have come down in Florence and didn't has spent six more seasons rotting, and the next storm does not care that the last one was a while ago. The cheapest version of storm preparation is knowing which of your trees is hollow before the wind tells you.

Is a leaning tree dangerous after a storm?

What Resistograph Testing Costs

Testing is priced per tree: $200 for each of the first two trees, then $100 for every additional tree measured on the same visit, with a $200 minimum. So five trees on one visit is $700 — two at $200 and three at $100. The rate halves after the second tree because the first two carry the setup. Once the equipment is out and we are already on the property, each additional trunk is mostly just the time it takes to take the readings. Annual re-tests price the same way, and re-testing several trees together is the cheapest way to keep a whole yard monitored.

A look is free when you are considering work. A written assessment is $300–$500.

Those are two different things and it is worth being plain about which you are buying. IF YOU ARE CONSIDERING WORK, THE INSPECTION IS FREE. Thinking about having a tree removed, trimmed or ground out? We come and look, walk the job with you, and price it. That costs nothing and it always has. You are under no obligation at the end of it. IF YOU WANT AN ARBORIST'S ASSESSMENT ON ITS OWN, THAT IS $300–$500. A health and risk assessment is a service rather than a sales call: a considered opinion on the condition of your trees, what is wrong with them, what the risk actually is and what they need. The price covers two or three trees, and we will stretch it to about ten on the same visit. The reason the second one is not free is the same reason it is worth having. An assessment you did not pay for is an assessment nobody is accountable for, and it tends to arrive at whatever conclusion sells the most work. Paying for it is what buys you an answer that can be "this tree is fine, leave it alone" — which is the answer a free visit has every incentive not to give you.

When to Ask for a Test

Worth testing: • A large hardwood within falling distance of the house, especially a maple or water oak • Any tree that has been struck by lightning • A trunk with a cavity, a seam, a fungal bracket, or an old wound that never closed • A tree another company has told you to remove, when you would rather have a measurement than a second opinion • Trees you are deciding between — when the budget covers one removal and you have three candidates Not worth testing: small trees, obvious hazards already failing, and anything where the root plate has lifted. If the soil has heaved, the wood quality is beside the point. We fold testing into the estimate when it is relevant rather than selling it as a separate visit. Ask when you call.

A Pecan We Did Not Remove

About four years ago we tested a pecan that the owner had already been told needed to come down. The resistograph put the decay under 20 percent — real, measurable, and nowhere near enough to justify losing the tree.

So we trimmed it instead, taking weight off the limbs that were the actual concern rather than taking the trunk. It is still standing. We trimmed it again this year, which is the second half of the point: the tree got a decision based on a measurement, and then it got looked at again.

Had the reading come back the other way, we would have said so just as plainly. The tool is useful precisely because it is capable of telling us the answer we were not expecting.

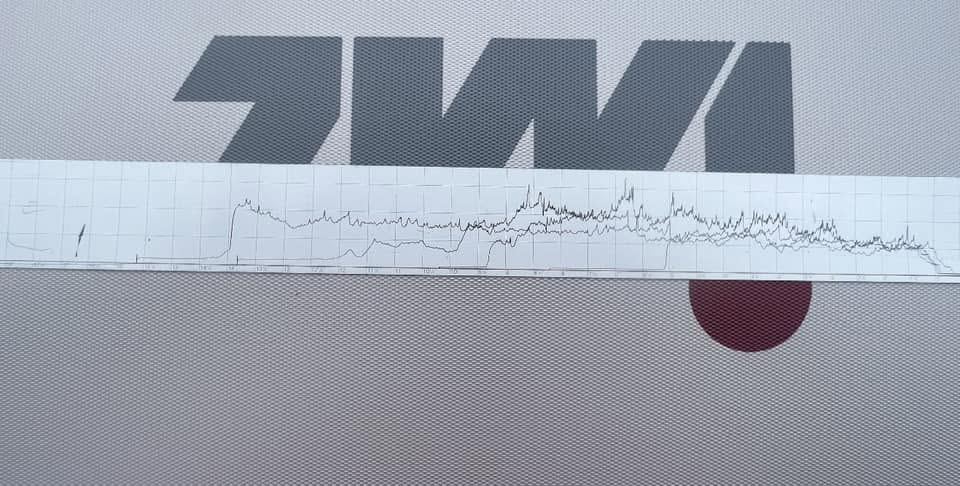

Resistograph density printout from a pecan tree test, Onslow County, NC — Resistograph reading from a pecan we tested about four years ago: under 20% decay. We trimmed it to reduce weight, and it's still standing — we trimmed it again this year.

A 20-Inch Water Oak That Looked Healthy, and Was 45 Percent Gone

Jacksonville. A water oak about 20 inches through, standing on the corner of a home with its weight out over the roofline. From the ground it looked healthy. The one thing against it was a canopy that had thinned — not dramatically, just less leaf than it should have carried.

The resistograph put roughly 45 percent heartwood rot inside it.

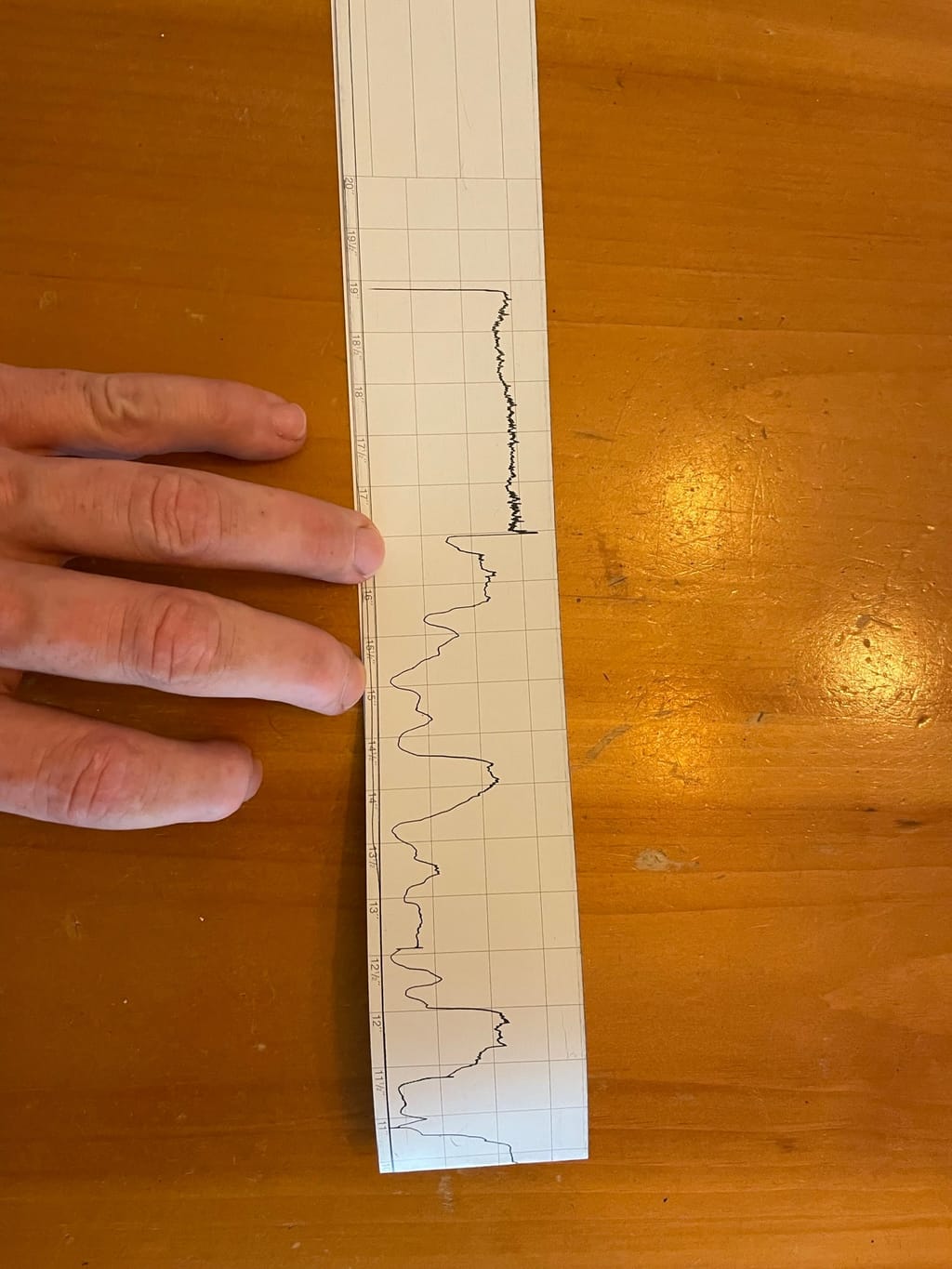

Resistograph paper trace from the 20-inch water oak: tight narrow bands at the outer edge where the wood is sound, and long rising hills that drop away through the middle where the heartwood has gone. — The strip the drill printed as it went through the trunk.

How to read the strip

It is less mysterious than it looks, and you can check our reading against the picture rather than taking our word for it.

Where the trace rises into hills and drops away again, the needle is passing through wood that is decayed or simply not there any more — it meets little resistance, wanders, and the line wanders with it. Where the trace settles into tight, narrow bands, the needle is in strong, intact wood: the outer layers, the cambium and xylem, which is the part actually holding the tree up.

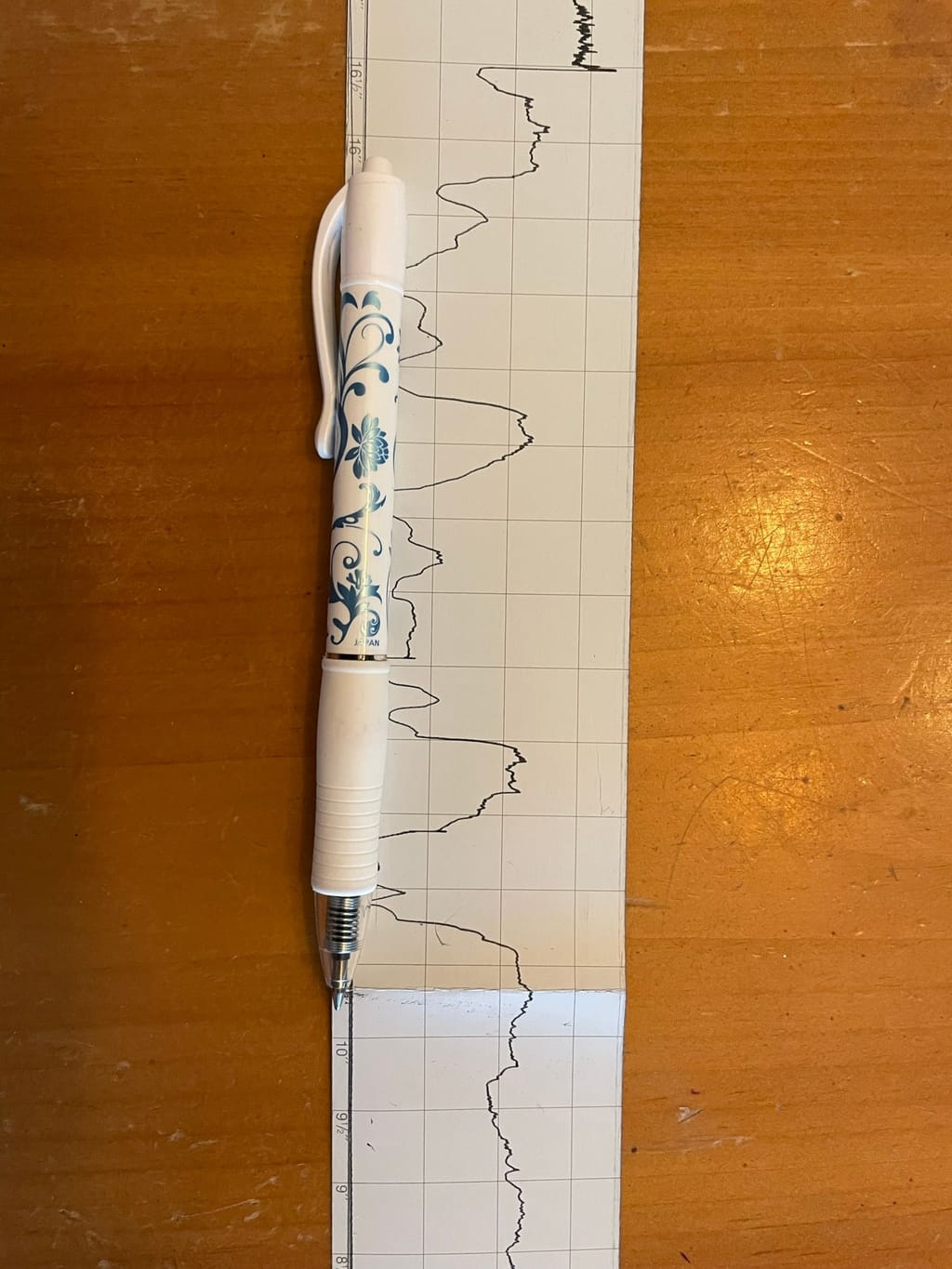

The same resistograph trace with a pen laid along it for scale, showing how far the decayed run extends across the strip. — A pen on the strip for scale — the decayed run is most of the middle of the trunk.

We recommended removal and removed it. Worth saying why, given this page spends most of its length arguing that rot on its own does not condemn a tree: it was not the 45 percent by itself. It was 45 percent in a trunk only 20 inches across — so the sound shell that remained was thin in absolute terms, not just in ratio — on a stem leaning its weight over a roof. Put the same reading in a 48-inch trunk in the middle of a field and we would have been talking about monitoring it.

The instrument works on any species. Pines read differently — the trace runs in looser waves rather than the tight bands a hardwood gives — so the shape you are looking for depends on what you drilled, which is a large part of why the reading is a job rather than a glance at a graph.

Watch a Test

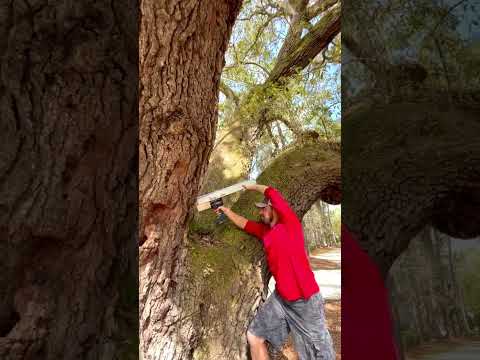

Thirty seconds of the drill going into a live oak big enough that no ladder was going to answer the question.

Resistograph test on a massive live oak in Swansboro, NC.

Sources

The lightning and hurricane facts above are not ours to assert on our own authority, so here is where they come from. Everything on this page about what we find in local species is our own test results, marked in the copy as our experience.

NC State Extension — Pine Bark BeetlesLightning strikes among the stresses that predispose pines to Ips engraver beetle attack; resin ("pitch tubes") as the tree's defense, and why a stressed tree may not produce it.
National Weather Service, Wilmington NC — Hurricane FlorenceLandfall near Wrightsville Beach the morning of Sept. 14, 2018, maximum sustained winds near 90 mph.
Kane, Ryan & Bloniarz (2001) — Comparing Formulae that Assess Strength Loss Due to Decay in TreesArboriculture & Urban Forestry 27(2). Why no single decay threshold decides a tree on its own: "the distinction between a hazard tree that needs to be removed and a nonhazard tree that can remain standing is not clear and rigid."
NC State Climate Office — North Carolina hurricane landfallsThe landfall record: Florence (Sept 2018), Dorian (Sept 2019), Isaias (Aug 2020) — the most recent hurricane landfall in the state.

Want the trunk measured rather than guessed at? Ask for a free estimate and mention the tree you are worried about.

Frequently Asked Questions

Does a resistograph hurt the tree?

The probe is about 3 mm across — roughly the thickness of a wire. It leaves a hole a healthy tree closes off on its own, and it is a far smaller wound than any of the alternatives for seeing inside a trunk. We still place the drill points deliberately rather than taking readings all over the tree.

How much does resistograph testing cost in Jacksonville, NC?

Testing is $200 per tree for the first two trees, then $100 for each additional tree tested on the same visit, with a $200 minimum. Five trees on one visit comes to $700. The rate drops after the second tree because the first two carry the setup — once the equipment is out and we are on site, each further trunk is mostly the time it takes to take the readings.

How much rot means a tree has to come down?

There is no single percentage that decides it. The most-quoted rule of thumb is Mattheck’s shell-thickness ratio, t/R = 0.3 — roughly 70 percent of the radius hollow — and it is a useful starting point rather than a verdict. Published research in Arboriculture & Urban Forestry is explicit that the line between a hazard tree and one that can stay standing “is not clear and rigid.” Species, where the decay sits, the lean, the root plate and what is underneath the tree all weigh in. In our experience roughly 60 percent of the trees we measure show some rot and still do not need removing right away.

Can you tell a tree is rotten without a resistograph?

Sometimes. A cavity, a fungal bracket, a seam running up the trunk, or a hollow sound are all real signals, and a lifted root plate settles the question without any tool at all. What you cannot do from the outside is tell how much sound wood is left, and that is the number that decides whether a tree stays.

Signs a tree is dangerous after a storm

My tree was struck by lightning and looks fine. Should I worry?

Worth having looked at. A strike dries the heartwood along its path and opens stress cracks as that wood shrinks, which lets insects and infection into the center of the tree. NC State Extension lists lightning strikes among the stresses that predispose pines to Ips engraver beetle attack, and notes that a stressed tree may not have the resources to produce the sap it would normally defend a wound with. In our experience many struck pines do not recover, and they often look healthy for a season first.

Which trees around Jacksonville are most likely to be rotten inside?

In our experience mature maples almost always carry some heartwood rot, and water oaks show a decent amount of rot on the resistograph roughly seven or eight times in ten. Live oaks rarely rot. We suspect the high water table here is part of the reason, though that is a pattern in our own results rather than a studied conclusion.
